100kVA 80kw Super Silent Generator Cummins Engine Diesel Genset Diesel Power Electric Generator

NO. GF-80-1

100kVA 80kw Super Silent Generator Cummins Engine Diesel Genset Diesel Power Electric Generator

Description:

Used Cummins diesel generator with about 100 hours of operating hours original engine. Includes brand new basetank , muffler , control module , filters , radiator , alternator , starter , pt pump , engine plate, all hoses. Customizable Silent Box,base fuel tank!

Industry-Specific Attributes:

odel

 Genset Diesel engine Dimensions&Weight

Power(KW/KVA)

 Engine model Cylinder Bore*Stroke(MM) Displacement(L) Dimensions(MM)

Weight(KG)

GF-10

 20/25 4B3.9-G1 4 102*120 3.9 1800*740*1300

800

GF-22

 22/27.5 4B3.9-G12 4 102*120 3.9 1800*740*1300

800

GF-30

 30/37.5 4BT3.9-G1 4 102*120 3.9 1900*740*1300

800

GF-40

 40/50 4BTA3.9-G2 4 102*120 3.9 1900*740*1300

800

GF-50

 50/62.5 4BTA3.9-G2 4 102*120 3.9 1900*740*1300

800

GF-60

 60/75 4BTA3.9-G11 4 102*120 3.9 1900*740*1300

800

GF-75

 75/94 6BT5.9-G1 6 102*120 5.9 2350*800*1300

1040

GF-80

 80/100 4BTAA3.9-G3 4 102*120 3.9 2350*800*1300

1040

GF-90

 90/112.5 6BTA5.9-G2 6 102*120 5.9 2350*800*1300

1060

GF-100

 100/125 6BTAA5.9-G2 6 102*120 5.9 2450*810*1345

1100

GF-120

 120/150 6BTAA5.9-G12 6 102*120 5.9 2450*810*1345

1100

GF-150

 150/187.5 6CTA8.3-G1 6 114*135 8.3 2450*840*1453

1450

GF-160

 160/200 6CTAA8.3-G2 6 114*135 8.3 2530-970*1400

1556

GF-200

 200/250 6LTAA8.9-G2 6 114*145 8.9 2650*960*1632

2000

GF-250

 250/312.5 6LTAA9.5-G3 6 114*145 9.5 2850*1100*1800

2500

GF-275

 275/344 6LTAA9.5-G1 6 116.5*148 9.5 2850*1100*1800

2500

GF-300

 300/375 6KTAA19–G6 6 130*163 13 3300*1600*1930

2500

GF-320

 320/400 6ZTAA13-G2 6 130*163 13 3300*1600*1930

2800

GF-350

 350/437.5 6ZTAA13-G4 6 130*163 13 3300*1600*1930

2800

GF-360

 360/450 QSZ13-G2 6 130*163 13 3200*1370*1880

3000

GF-400

 400/500 QSZ13-G3 6 130*163 13 3200*1370*1880

3000
GF-500 500/625

KTAA19-G6A

6

159*159

19

3500*1600*2100

3800

    * Send us your question, we will respond in the next 24 Hours

    Description

    Diesel generator Details
    Model GF-80
    Power8 80(KW)
    Frequency 50HZ
    Voltage 400/230V
    Rotating Speed 1500(KW/r/min)
    Optional Type Open/soundproof (can be customized)
    Size 2300*850*1300mm
    Weight 1056kg

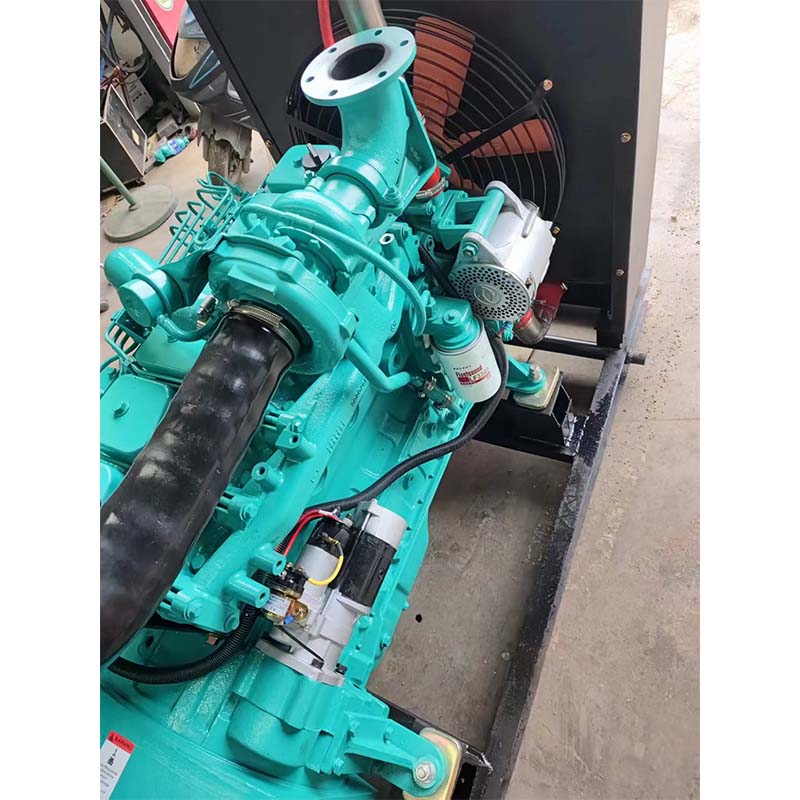

    With Diesel Engine
    Brand cummins 6BTA5.9-G2
    Cylinders 6 in line arrangement
    Bore*Stroke 102*120mm
    Displacement 5.9L
    Fuel Consumption at 100% Load 208g/kw.h
    Engine Compression Ratio 17.5:01
    With Altermator
    Model TFW-80
    Export AC
    Voltage adjust range Three Phase Four Wire System
    Insuation Grade H
    Protection Grade IP21
