  5. New Shanghai Diesel Generator 400kw/500kva Soundproof / Silent /Open Diesel Electric Power Generator

New Shanghai Diesel Generator 400kw/500kva Soundproof / Silent /Open Diesel Electric Power Generator

NO. GF-400-4

New Shanghai Diesel Generator 400kw/500kva Soundproof / Silent /Open Diesel Electric Power Generator

Description:

Genuine new Shanghai original diesel generator, used original engine set. Customizable Silent Box,base fuel tank!

Industry-Specific Attributes:

Genset Model

 Power(KW/KVA) Engine Model Cynlinder Bore*Stroke Displacement Weight(KG)

Dimensions(MM)

GF–50

 50.4/63 4135D 4 135*140 8 1380 2300*800*1350

GF–64

 64/80 4135AD 4 135*150 8.6 1520

2250*800*1350

GF–75

 75.2/94 6135D 6 135*140 12 1860 2600*900*1400
GF–100 100/125 6135AD 6 135*150 12.9 1900

2600*900*1400

GF–120

 120/150 6135AZD 6 135*150 12.9 2240 2680*1020*1690

GF–150

 150.4/188 6135AZD 6 135*150 12.9 2340 2680*1020*1690
GF–180 180/225 G128ZLD 6 135*150 12.88 2340

2860*1100*1600
GF–200 200/250 G128ZLD2 6 135*150 12.88 2390

2860*1100*1600

GF–250

 250.4/313 G128ZLD1 6 135*150 12.88 2440 2860*1200*1600
GF–300 300/375 G128ZLD11 6 135*150 12.88 2440

2860*1200*1600

GF–300

 300/375 12V135AZD 12 135*150 25 3460 3400*1350*1900
GF–350 350.4/438 12V135AZLD 12 135*150 25 3980

3400*1350*1900

GF–400

 400/500 12V135BZLD 12 135*155 25.8 4180 3700*1500*2020

GF–450

 450.4/563 12V135BZLD2 12 135*155 25.8 4280

3800*1500*2020
GF–500 500/625 12V135BZLD1 12 135*155 25.8 4380

3800* 1500*2020

    * Send us your question, we will respond in the next 24 Hours

    Description

    Diesel generator Details
    Model GF-400
    Power 400(KW)
    Frequency 50HZ
    Voltage 400/230V
    Rotating Speed 1500(KW/r/min)
    Optional Type Open/soundproof (can be customized)
    Size 3100*1200*1750mm
    Weight 2500kg

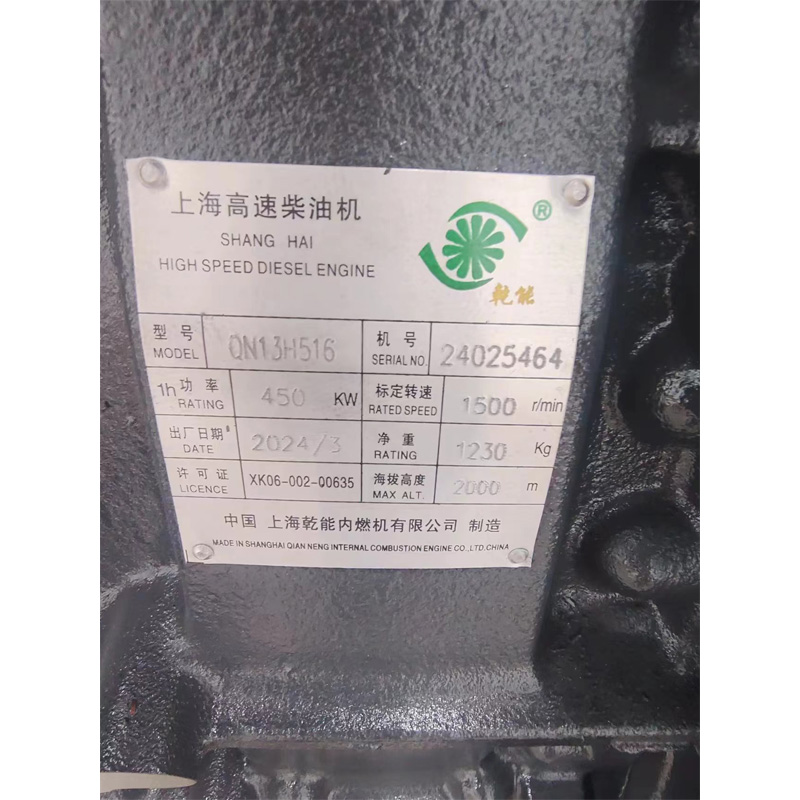

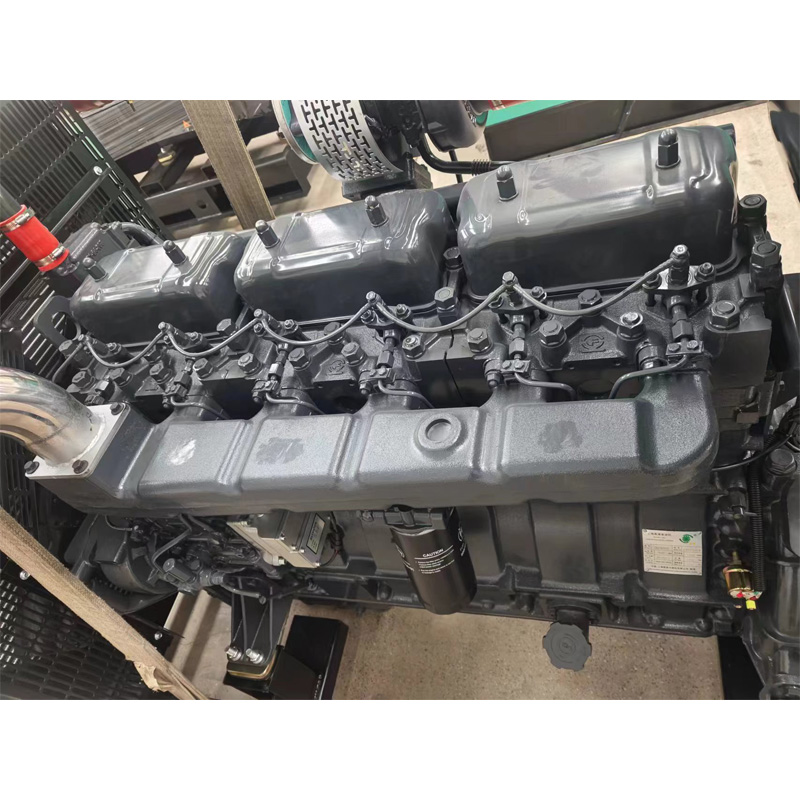

    With Diesel Engine
    Brand SHANGHAI QN13H476
    Cylinders 6 in line arrangement
    Bore*Stroke 135*165mm
    Displacement 13L
    Fuel Consumption at 100% Load 200g/kw.h
    Engine Compression Ratio 17:01

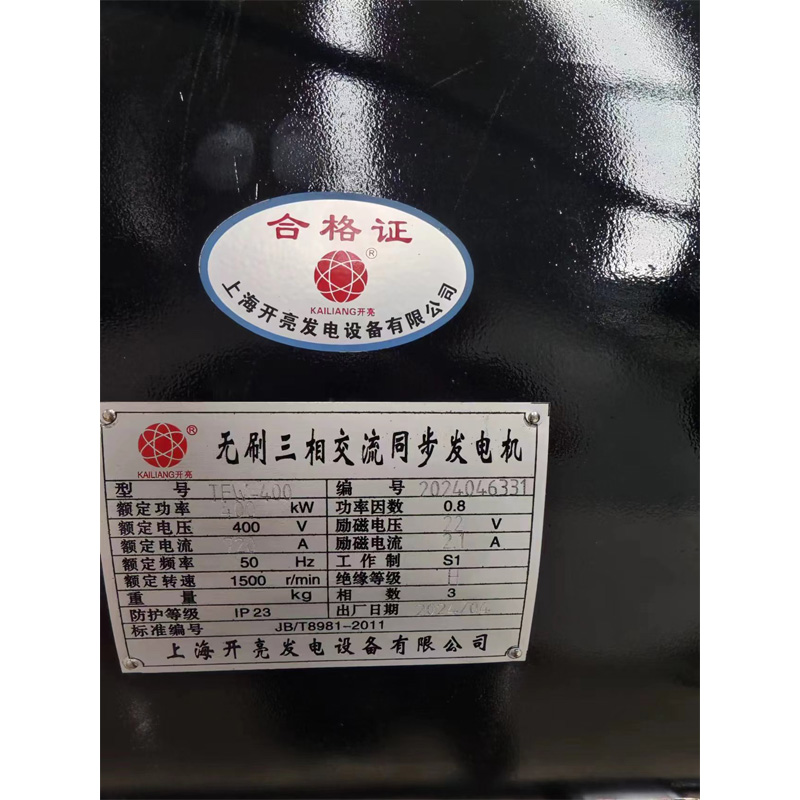

    With Altermator
    Model TFW-400
    Export AC
    Voltage adjust range Three Phase Four Wire System
    Insuation Grade H
    Protection Grade IP21
